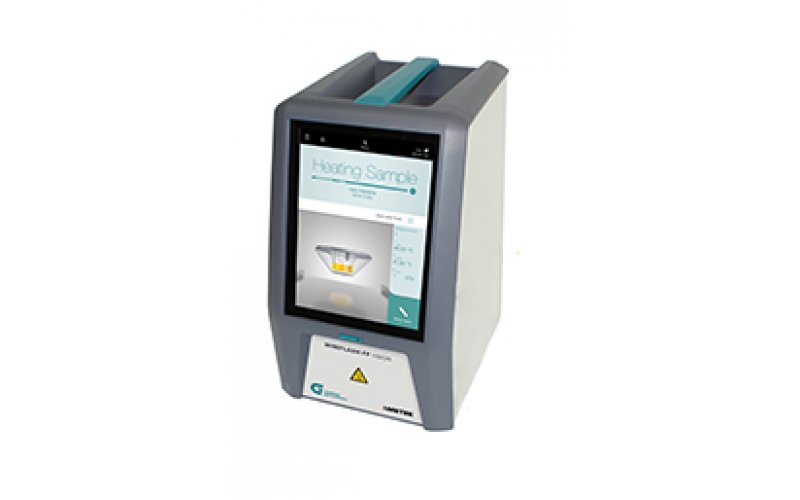

MiniFlash FP Vision




Flash Point


Grabner Instruments


Ambiental, Cosmética e Farmacêutica, Petroquímico

ASTM D6450, ASTM D7094 O equipamento para determinação do Flash Point MINIFLASH FP Vision é exclusivamente projetado para a determinação dos pontos de inflamação de líquidos e sólidos. O analisador usa o método de deteção de ponto de flash da Grabner, que consiste num disparo desencadeado por um arco elétrico controlado por energia em que se mede o aumento instantâneo da pressão dentro de uma câmara fechada. Ao aquecer a câmara de teste pelo topo, o analisador evita a condensação de compostos altamente voláteis, garantindo melhores resultados.

  • Flash point according to ASTM D6450/SHT0768 (Flash Point by Continuously Closed Cup) and ASTM D7094 (Flash-Point by Modified Continuously Closed Cup)
  • Equivalent EN ISO 2719, excellent correlation to ASTM D56, ISO13736, IP170
  • ASTM COMMITTEE STATEMENT: "There is no statistically significant bias observed between ASTM D7094 and ASTM D93 Procedure A."
  • Approved for diesel fuel and kerosene specifications ASTM D975, D396, D2880, D3699
  • Approved for ASTM specifications of recycled fuel and biodiesel
  • New methods for EN ISO 3679 and EN ISO 3680 simulation
  • Dilution Flashpoint Testing
  • Go / No Go Flashpoint Testing
  • Fast screening methods
  • Customized screening methods for higher flexibility
  • Automatic ignition cleaning method
  • Ignition Protection Technology guarantees safety first and foremost
  • No open flame or offensive vapors in the lab
  • Highest accuracy
  • Remotely operable
  • Big, color touchscreen for convenient, intuitive menu navigation
  • Hassle-free communication and data transfer via USB, Ethernet, LIMS and the PC software COCKPIT for Vision analyzers
  • User rights management and statistical quality control with COCKPIT Software for Vision analyzers
  • Worldwide standard method for the flavors and fragrances industry
  • Short measuring time due to small sample volume of 1-2 ml
  • Combustion Analysis
  • Excellent thermoelectric heating and cooling regulation with Advanced Peltier Coooling Technology

Printer recommended

Technical Data

Temperature Range

0 to 120°C (32 to 248°F) without cooling
Down to -25°C (-13°F) with water cooling
10 to 400°C (50 to 750°F)
Power Requirements:
100/110/120/230/240 V AC 50/60 Hz, max. 180 W (optional car adapter for field use)
W x H x D:
253 x 368 x 277 mm (10" x 14.5" x 10.9")
10.2-11.2 kg (22.4 lb)

Precision Data
Pensky-MartensASTM D93A

1.9°C (3.4°F)
3.8°C (6.8°F)
4.1°C (7.4°F)


3.1°C (5.6°F)
5.4°C (9.7°F)
6.9°C (13.4°F)


An aluminum cup (1) with a capacity of 7 ml and containing 2 mL of sample is resting in the sample cup holder. For the test, the sample cup is lifted to the temperature controlled oven (2), forming the test-chamber with a metal to metal seal. A thermocouple (3) is immersed into the sample to measure the temperature. The temperature of the oven is controlled by Peltier elements (4) and an air cooled heat sink (5). The vapor is ignited by a high voltage arc (6) inside the test-chamber. At the flash point, the pressure inside the sealed measuring chamber is increased significantly, which is detected by a built-in pressure transducer (7). A rotating magnet and a small magnet (8) inside the the sample cup provide stirring.

Continuous product development may make it necessary to change product specifications without notice.
